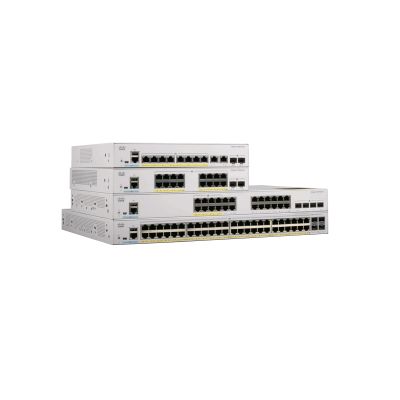

Комутатор Cisco Catalyst 1000 24port GE, Full POE, 4x1G SFP

Single fixed power supply. Models have external power supply. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.

60

USB mini-B port, USB-A port for storage and Bluetooth console

802.1X, Authentication, ACLS, Port-based ACLs, SSH, Kerberos, and SNMP v3, SPAN, TACACS+ and RADIUS authentication, MAC address notification, MAC Authentication Bypass (MAB), BPDU Guard, IP Source Guard, SSH v2, STRG, IGMP

444.5 x 345.2 x 43.9

Fixed Port

24

10/100/1000Base-T

Support both IEEE 802.3af PoE and IEEE 802.3at PoE+; 30W for any 12 ports or 15W for 24 ports; PoE power budget: 370W

4x SFP

-

Web UI via Cisco Configuration Professional; CLI using a Telnet or Secure Shell (SSH) client over Bluetooth. The GUI can be accessed over Bluetooth with a browser. Single IP Management. Network management

-

yes

Да

10/20 Gbps (Forwarding/Switching)

14.88 Mpps

15 360

802.1D STP, 802.1p CoS Prioritization, 802.1Q VLAN, 802.1s, 802.1w, 802.1X, 802.1ab LLDP, BT v4.0, 802.3ad, 802.3af, 802.3ah (100BASE-X single/multimode fiber only), 802.3x full duplex, 802.3, 802.3u, 802.3ab, 802.3z, RMON, SNMP, 802.3az, 802.3ae

Rackmount

Static

512MB DRAM, 256 MB Flash memory

Maximum active: 256; IDs available: 4094

-

IPv6 routing, Access Control Lists (ACLS)

Up to 8 egress queues and 2 thresholds per port, Ingress policing, QoS through DSCP mapping and filtering, QoS through traffic classification, Trust boundary, AutoQoS, Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD), 802.1p CoS
